Description

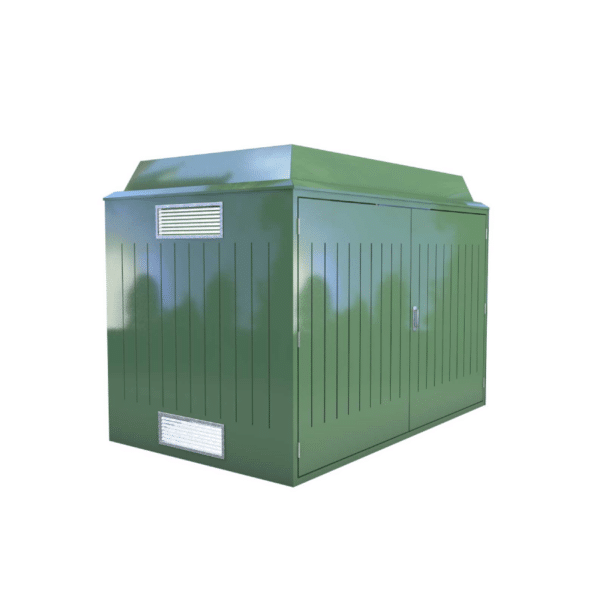

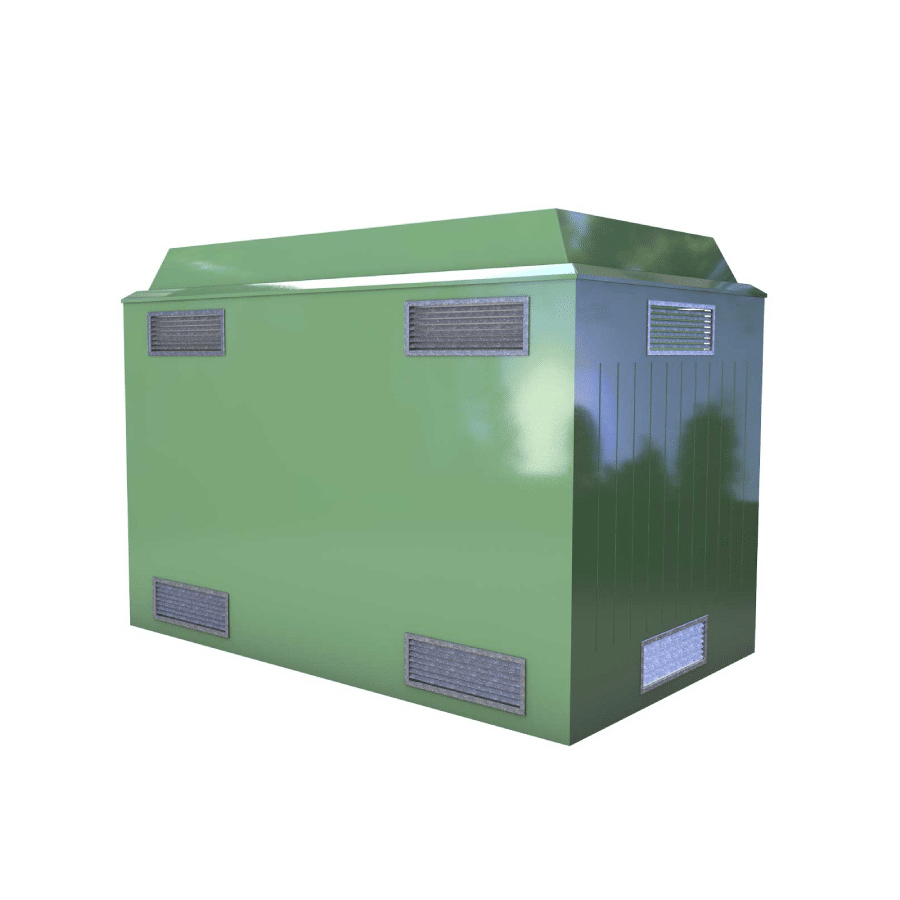

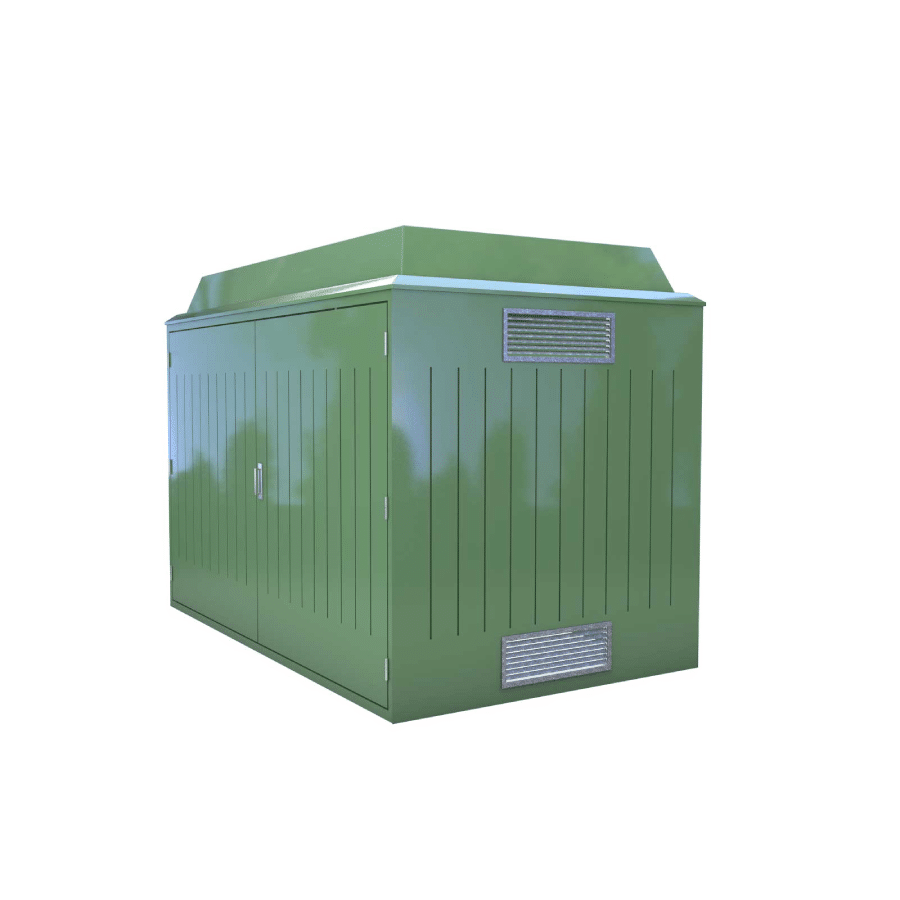

GRP Housing developed to UK DNO and IDNO requirements and ideally suited to protect electrics, transformer and substation equipment.
- Single Skin GRP construction using Class 2 fire retardant resin to BS476 Part 7.
- Roof includes encapsulated foam core material.
- Double doors complete with Stainless Steel hinges, shoot bolts to passive leaf, 10/10 cord pull door stays and espagnolette lock for padlock.
- Removable Threshold.
- 8 off galvanised steel louvered vents (4 off at high level and 4 off at low level).
- Explosion Relief specification to meet UK DNO + IDNO requirements.
- External Finish : Semi-Gloss Gelcoat Finish coloured to Customer’s Requirements.
- Internal Finish : White GRP.
| Width (external) | 3112 mm |
| Depth (external) | 2264 mm |
| Height (wall panel) | 1950 mm |
| Height (max) | 2264 mm |
| Door Information | |
| Clear Width (mm) | 2900 mm |
| Clear Height (mm) | 1720 mm |
Please note the transformer range are designed for all weather transformers and give a high volume of ventilation. If you have specific IP requirements, please contact the sales team to discuss its suitability.
