TR16 – GRP Housing

£6,320.00£7,225.00

* “Other” colours should be specified from one of the following ranges: BS5252, RAL 5100 or RAL 1002. If you have any queries regarding this, please contact us before placing your order.

Description

GRP Housing developed to UK DNO and IDNO requirements and ideally suited to protect electrics, transformer and substation equipment.

  • Single Skin GRP construction using Class 2 fire retardant resin to BS476 Part 7.
  • Roof includes encapsulated foam core material.
  • Internal GRP Partition to create two compartments within the housing.

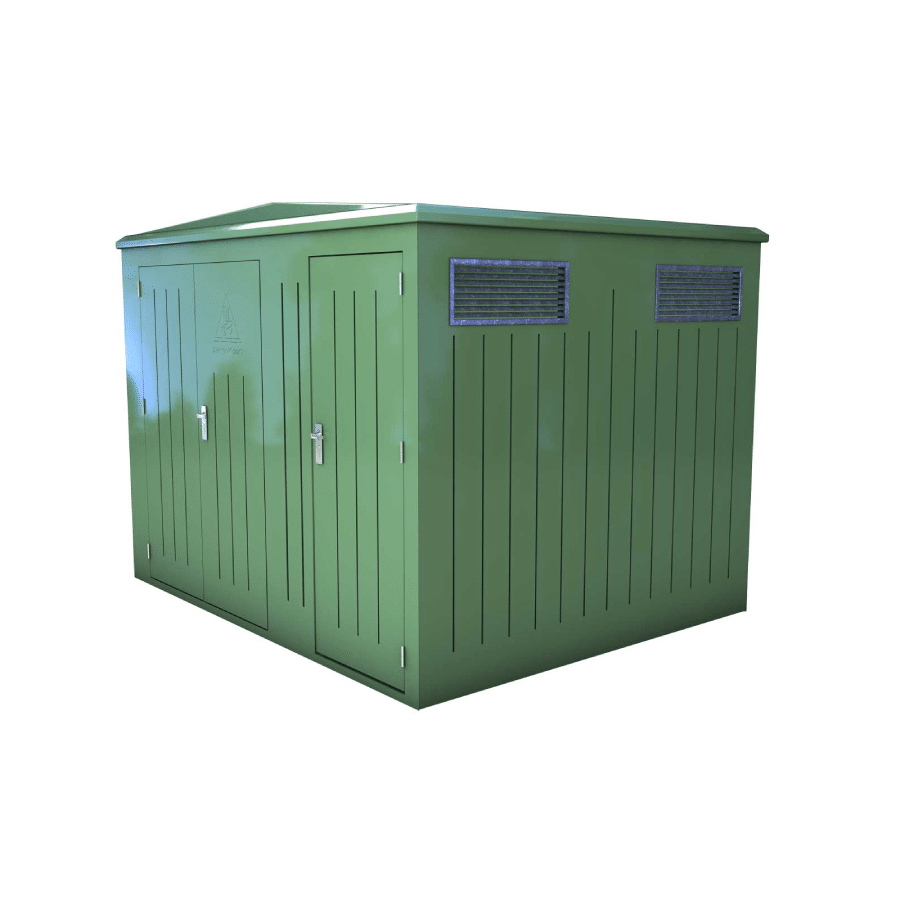

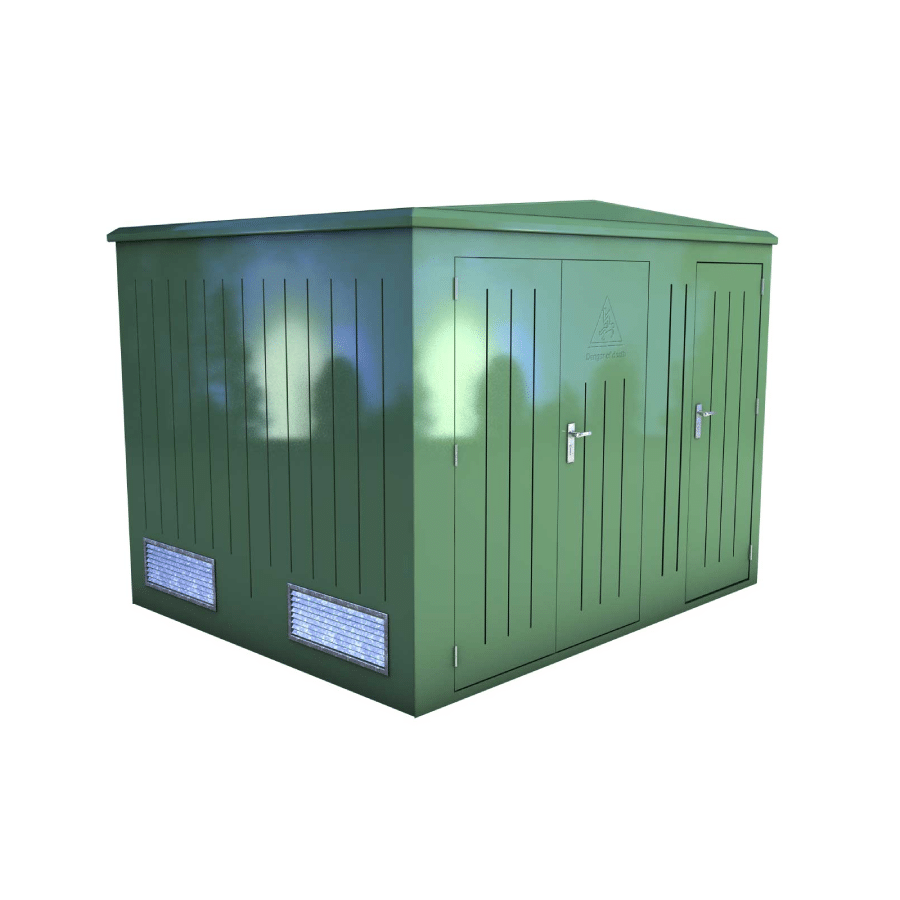

  • Double doors complete with Stainless Steel hinges, shoot bolts to passive leaf, 10/10 cord pull door stays and espagnolette lock for padlock.
  • Single door complete with Stainless Steel hinges, 10/10 cord pull door stays and espagnolette lock for padlock.

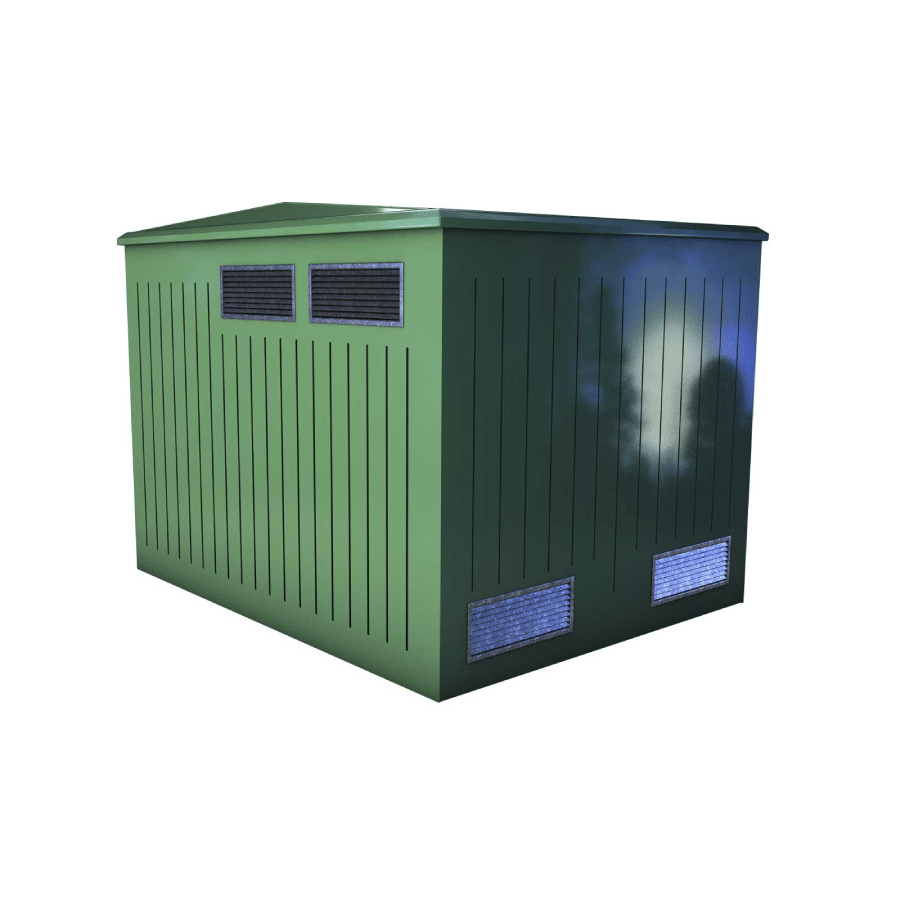

  • 4 off galvanised steel louvered vents to large compartment (2 high level and 2 low level).
  • 2 off galvanised steel louvered vents to small compartment (2 low level).
  • Explosion Relief specification to meet UK DNO + IDNO requirements.
  • External Finish : Semi-Gloss Gelcoat Finish coloured to Customer’s Requirements.
  • Internal Finish : White GRP.
  • Plywood mounting board to rear of small compartment as standard. Backboard and Additional Backboard options for large compartment only.
Width (external) 3100 mm
Depth (external) 2500 mm
Height (wall panel) 2200 mm
Height (max) 2585 mm
Door Information
Clear Width (mm) 1500 mm
Clear Height (mm) 2000 mm

Please note the transformer range are designed for all weather transformers and give a high volume of ventilation. If you have specific IP requirements, please contact the sales team to discuss its suitability.

More Information…

Additional information

Colour

Dark Brown 08-B-25, Green 14-C-39, Grey 10-A-07, Light Brown 08-B-21, Light Green 12-B-21, Other (£165)

Backboard

Not Required, Rear Wall – 18mm Plywood (+£160)

Additional Backboards

Not required, Left Wall – 18mm Plywood (+£160), Right Wall – 18mm Plywood (+£160), Left and Right Wall – 18mm Plywood (+£320)

GTC Locking Shroud

Not required, Single (+£160), Double (+£160)

Delivery Format

Ready-built, Flat Pack (+£100)
