Description

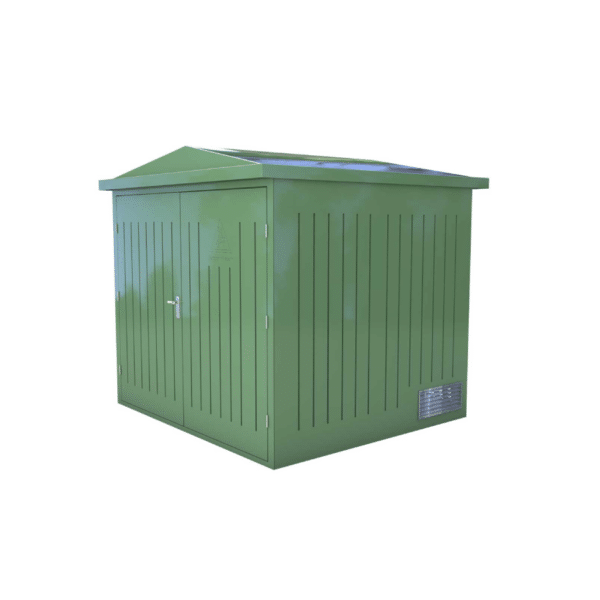

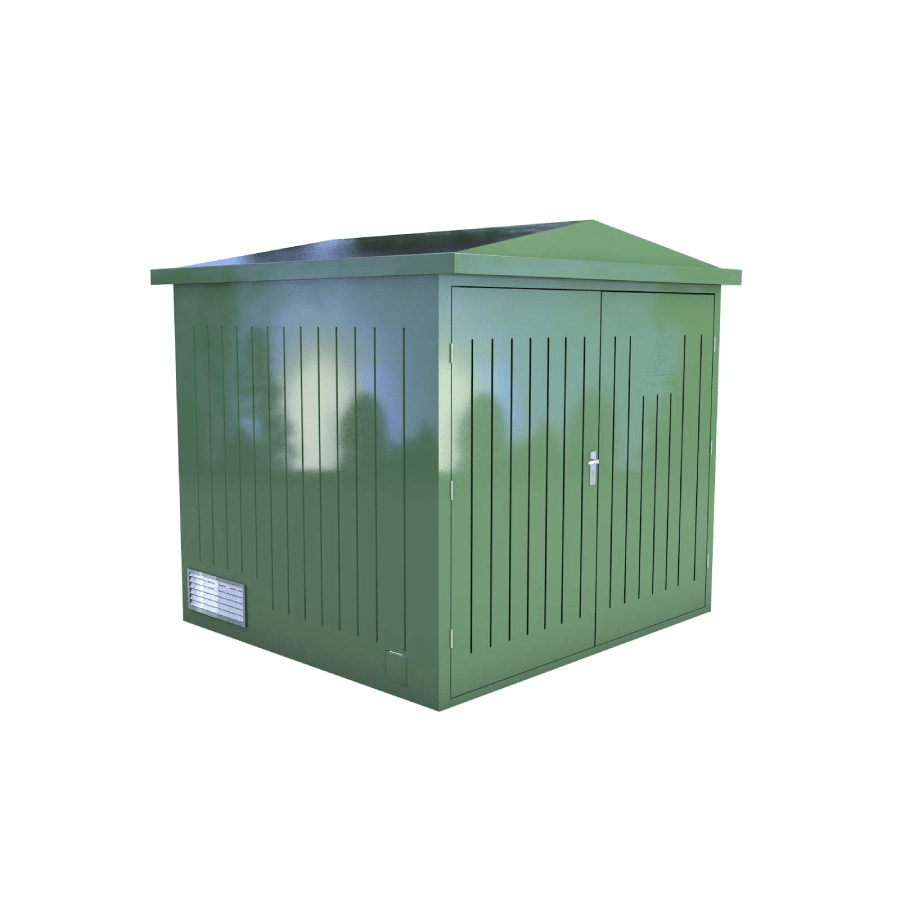

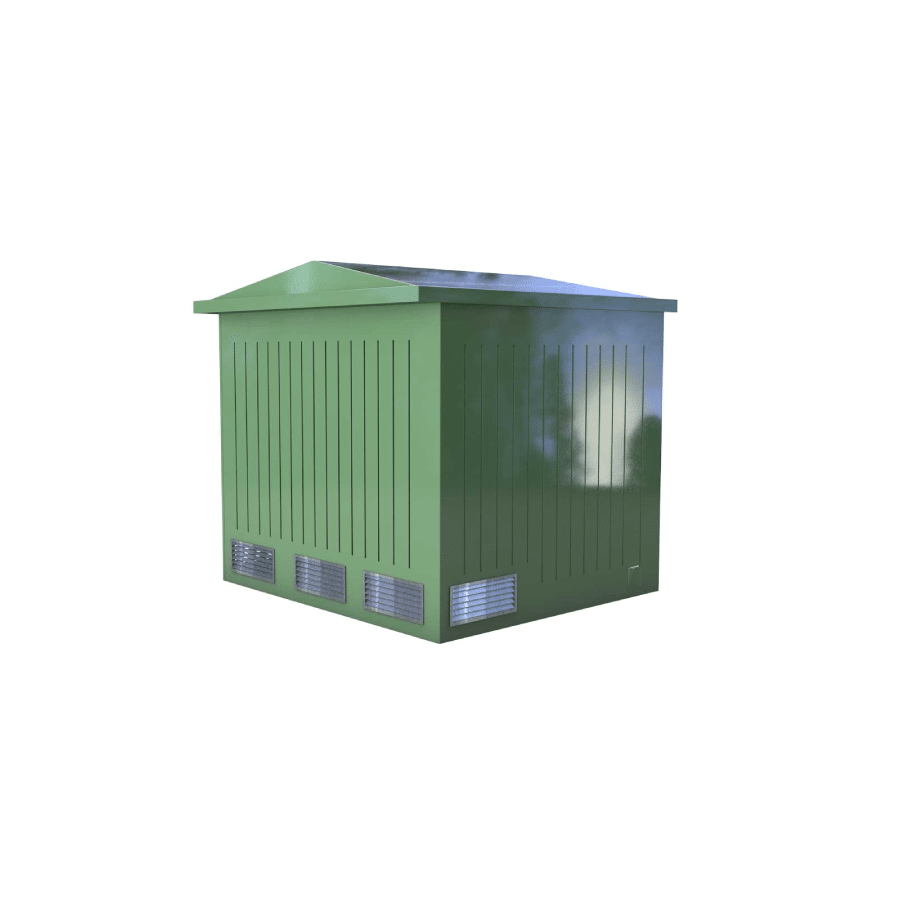

GRP Housing developed to UK DNO and IDNO requirements and ideally suited to protect electrics, transformer and substation equipment.
- Single Skin GRP construction using Class 2 fire retardant resin to BS476 Part 7.
- Roof includes encapsulated foam core material.
- Double Doors complete with Stainless Steel hinges, shoot bolts to passive leaf, 10/10 cord pull door stays and espagnolette lock for padlock.
- Removable Threshold.
- 5 off galvanised louvered vents at low level (3 off in rear wall and 1 off in each side wall).
- Roof overhang filled with galvanised expamet mesh to provide under eaves ventilation at front and rear.
- Explosion Relief specification to meet UK DNO + IDNO requirements.
- External Finish : Semi-Gloss Gelcoat Finish to Customer’s Requirements.
- Internal Finish : White GRP.
| Width (external) | 2700 mm |
| Depth (external) | 2400 mm |
| Height (wall panel) | 2200 mm |
| Height (max) | 2570 mm |
| Door Information | |
| Clear Width (mm) | 2490 mm |
| Clear Height (mm) | 1970 mm |
Please note the transformer range are designed for all weather transformers and give a high volume of ventilation. If you have specific IP requirements, please contact the sales team to discuss its suitability.
