GRP Roadside Cabinets

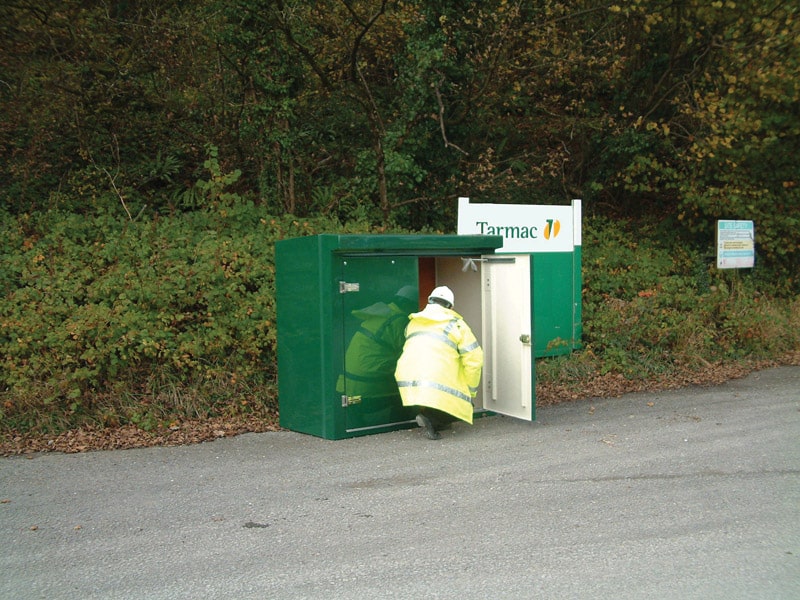

Envico Engineering’s GRP Roadside Cabinet range includes many size options to achieve a perfect fit for your equipment. Ideally suited to protect instrumentation, pump sets, control panels and switch gear, our Roadside Cabinet range has been used in a wide range of uses by utility, local authority, construction and rail sectors. Our cabinets can be configured with several options of lock, colour, construction and mountain board options to suit your needs.

What makes our cabinets stand out from the rest?

Our standard range of Roadside Cabinets are all manufactured from Single Skin GRP (Glass Reinforced Polymer) using self-extinguishing fire-retardant resin to Class 2 BS 476 Part 2. Most of our cabinets are also designed as a single moulded unit, reducing the number of seams, and increasing the longevity of the cabinet. Envico Engineering also offer several options of colour, lock, mounting boards and electricals for our cabinets.

Standard colours of stock GRP cabinets available are BS 5252 14-C-39 Green and 10-A-07 Grey, though the full BS 5252 or RAL range is available.

Please see technical drawings by clicking on the image of the product to see exact dimensions.

GRP Roadside Cabinet Single Door Range

Model (Click for Drawing)	Width External	Width Internal	Height (Max)	Depth External	Depth Internal	Depth Max (Top)	Door Clear Width	Door Clear Height	Sill

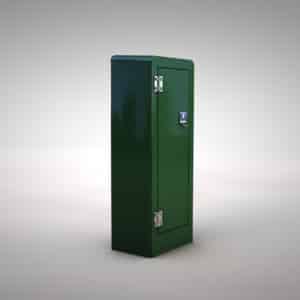

Feeder Pillar	340	330	860	210	135	210	240	710	95
Meter Cabinet	460	450	615	300	265	300	345	495	45

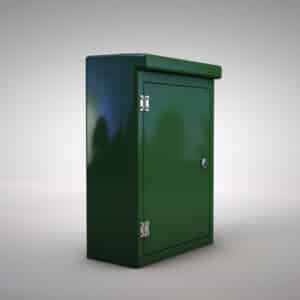

Torbette	640	630	910	300	250	355	490	720	80

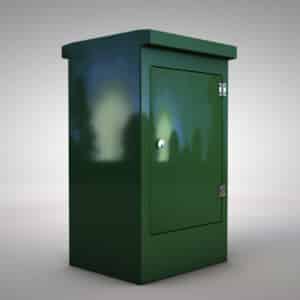

Double Torbay	640	630	1135	530	450	570	490	720	300

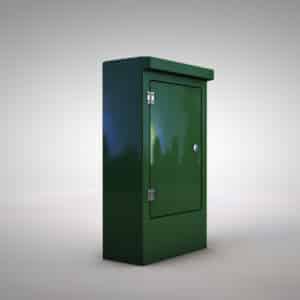

Torbay	640	630	1135	300	250	355	490	720	300

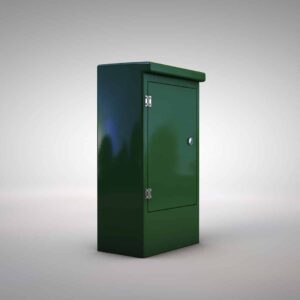

Type P	630	620	1165	375	320	430	490	720	300

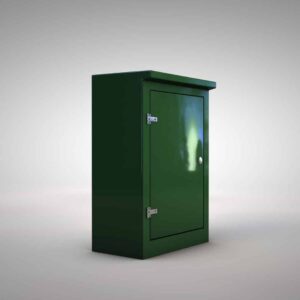

Type E4	750	730	1080	400	310	400	525	810	120

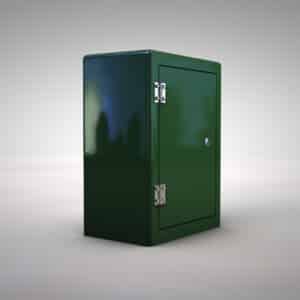

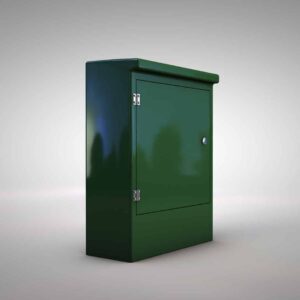

Type R	900	890	1175	330	280	385	750	710	290
Type S	900	890	1175	550	500	600	750	710	290

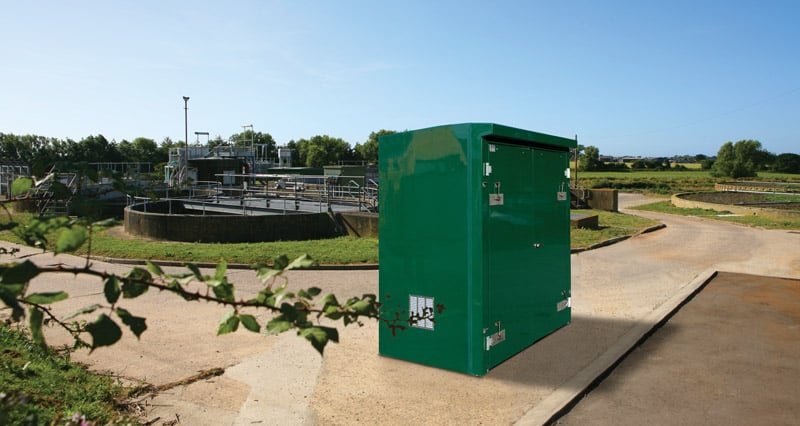

GRP Roadside Cabinet Double Door Range

Model (Click for Drawing)	Width External	Width Internal	Height (Max)	Depth External	Depth Internal	Depth Max (Top)	Door Clear Width	Door Clear Height	Sill (*Removable)
Type O	1065	1010	1270	460	400	530	860	860	240
Type E6	1065	1010	1270	460	400	530	858	998	70
Type M	1065	1010	1275	660	580	745	860	860	240

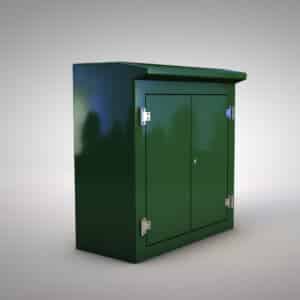

Type J	1410	1390	1515	660	605	775	1165	1220	120

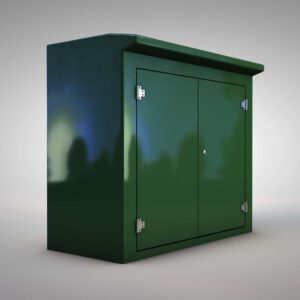

Type H	1760	1730	1580	790	730	900	1485	1310	70

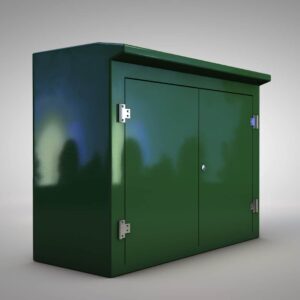

Type G	2010	1990	1585	800	740	910	1730	1305	70
Type F	2010	1980	2255	1250	1180	1360	1735	2000	45*
Type E	2010	1890	2255	1750	1680	1860	1735	2000	45*
