GRP Transformer Housings and GRP Substation Enclosures

The Envico Engineering range of GRP transformer housings and GRP Substation enclosures have been specifically designed to be a robust, but lightweight design. The transformer housing range incorporates several options for high- and low-level ventilation to disperse the heat emitted from the equipment inside.

Many of Envico’s products in the transformer housing range have been developed to UK DNO and IDNO requirements for ventilation and explosion relief. To protect your equipment from fire, all products are manufactured using Class 2 fire retardant resin to BS476 Part 7, slowing the surface spread of flame.

The large GRP double doors at the front give easy access and are fitted with a two-point lock system, suitable for a padlock. The GRP housings and enclosures have been independently tested by the Building Research Establishment to ensure it meets the required criteria.

Our GRP Transformer housings, kiosks and GRP Substation enclosures have many other uses; please call to discuss your requirements.

Our Transformer Housing Range

Model (Click for Drawing)	Width	Height (Nominal)	Depth	Door Clear Width	Door Clear Height

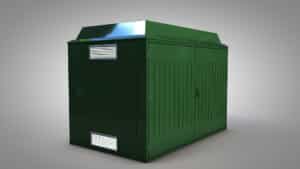

TR1	3112	2250	2264	2900	1720

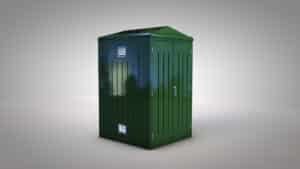

TR4	1400	2150	1450	1175	1880

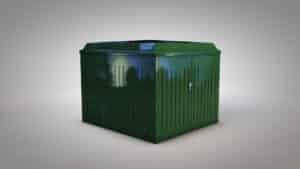

TR5	2500	2260	2800	2290	1720

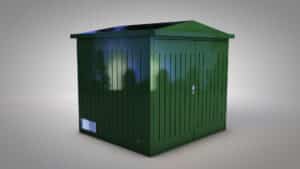

TR6	2700	2275	2400	2490	1970

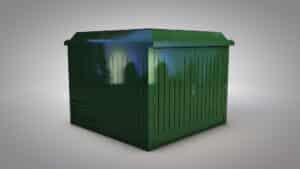

TR7	2800	2275	2800	2390	1720

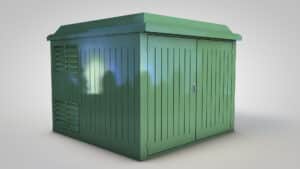

TR7 EXV	2800	2275	2800	2390	1720

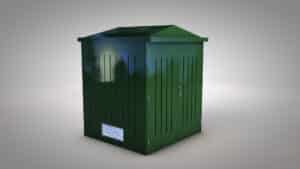

TR9 (Currently Unavailable)	1800	2000	1700	1590	1720
TR11	2000	2375	2000	1900	2125

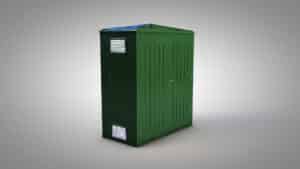

TR12	2000	2375	1000	1900	2125

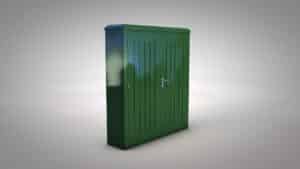

TR12 A	2000	2375	500	1900	2125

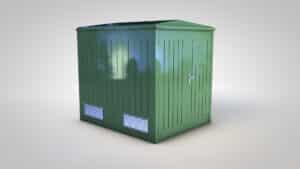

TR15	2100	2595	2500	2000	2000

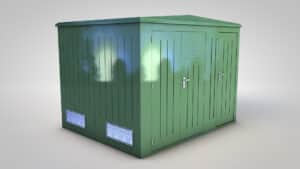

TR16	3100	2585	2500	1500	2000

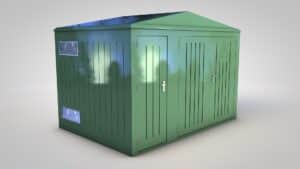

TR17	3600	2570	2500	2000	2000

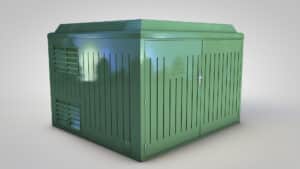

TR18	3112	2264	2800	2900	1720
TR20	3000	2700	2450	2300	2150

Features:

Single Skin GRP construction using Class 2 fire retardant resin to BS476 Part 7.
Double doors complete with Stainless Steel hinges and options for locks and locking shrouds.
Options for ventilation and vent materials.
Explosion Relief specification to meet UK DNO & IDNO requirements on selected products.
Semi-Gloss Gelcoat Finish coloured to Customer’s Requirements (BS5252, RAL 5100 or RAL 1002).
White GRP internal finish.
Flat Pack or Ready-built delivery options.
Options for additional ply backboards on internal walls.
Electrical fit-out options available using NICEIC accredited electricians.

Framework Partners / Approved Suppliers:

UK Power Networks
National Grid
SE Power Distribution
SHE Power
ENWL
NPG
SPEN
